Cobram 60
49 hp (Stage IIIA) isodiametric tractor. Narrow wheel track, compact dimensions and reduced turning radii.

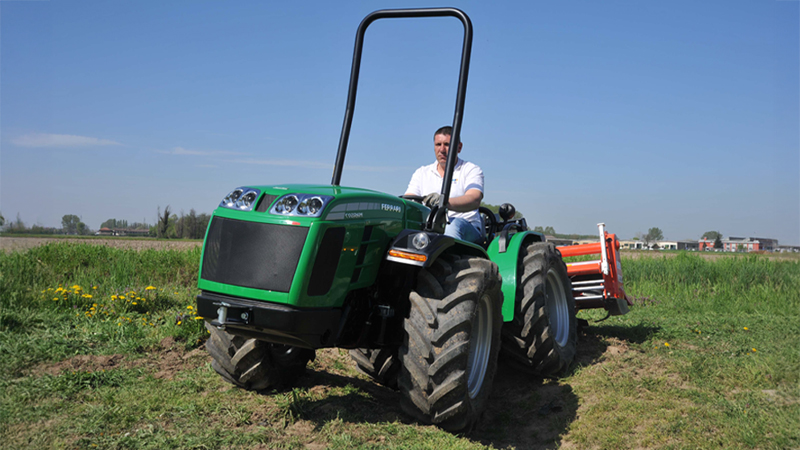

Cobram 60 AR is a multi-functional and compact isodiametric tractor designed to work in extremely tight spaces: row crops, vineyards, orchards, greenhouses and nurseries.
The OS-Frame and the power steering acting on the central joint of the tractor ensure agility between the rows and reduced turning radii.

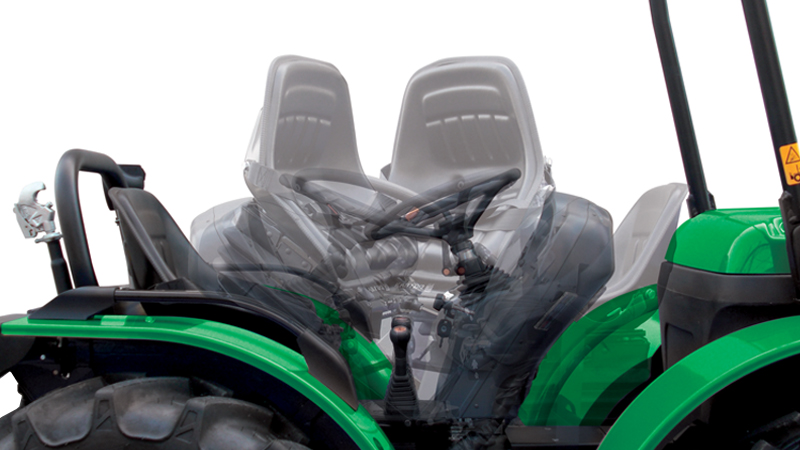

The reversible driving position (optional) makes it possible to work in a practical and safe manner both with towed and front-mounted attachments.
Technical Data
Cobram 60 - AR
| Type | Isodiametric with footstep driving position |
|---|---|
| Chassis | Articulated |
| Driving position | Monodirectional or reversible |
| Transmission | 12 + 12 |
| Synchronized reverser | Yes |
| Drive | Permanent 4WD |
| Hydraulic system | Dual circuit with independent pumps |
| Joystick | n/a |
| Rear lifting capacity (kg) | 1200 (at the ball joint) |
| Front lift | n/a |
| PTO rotation speed (rpm) | 540 |
| PTO engagement control | Electro-hydraulic |
| Service brakes | Multidisc in oil bath, acting on the rear wheels |
| Cabin | n/a |
n/a = not available
Tyres: 320/65 R18 – 250/80 R18 – 280/70 R18 – 260/70 R20
Engine speed: 2600 rpm
4 cylinders

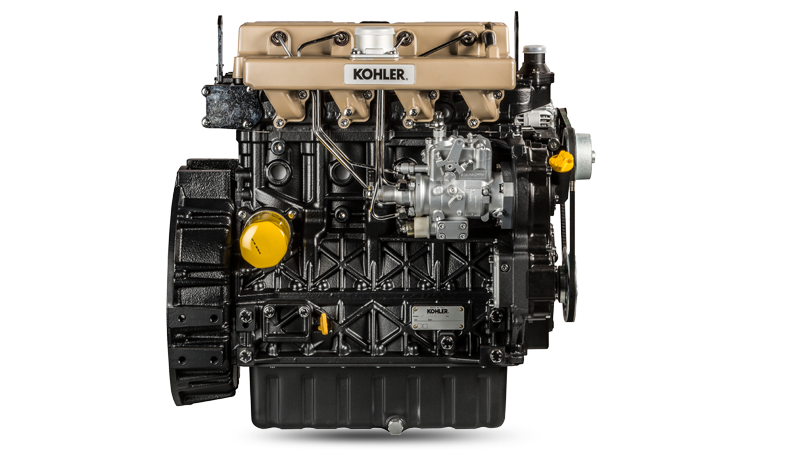

The Cobram 60 range is equipped a 4-cylinder Kohler engine with direct injection which develops 49 hp.
Counter-rotating masses of the engine reduce vibrations to the advantage of the heard noise and the higher operating comfort.
